• La haute précision et le rendement élevé permettent d'obtenir une surface de traitement de haute qualité des électrodes de cuivre.

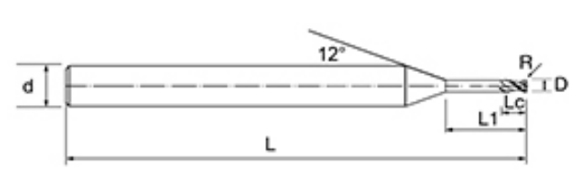

| Non. | Diamètre D | Angle R. R | Longueur rée la flûte LC | Longueur efficace L1 | Longueur totale L | Diamètre de la tige d | Nombre de lames F |
| NNX-2RSP-D0.2-L1 | 0.2 | 0.02 | 0.2 | 1 | 50 | 4 | 2 |
| NNX-2RSP-D0.2-L1.5 | 0.2 | 0.02 | 0.2 | 1.5 | 50 | 4 | 2 |
| NNX-2RSP-D0.2-L2 | 0.2 | 0.02 | 0.2 | 2 | 50 | 4 | 2 |
| NNX-2RSP-D0.2-L3 | 0.2 | 0.02 | 0.2 | 3 | 50 | 4 | 2 |
| NNX-2RSP-D0.2-L1 | 0.2 | 0.05 | 0.2 | 1 | 50 | 4 | 2 |
| NNX-2RSP-D0.2-L1.5 | 0.2 | 0.05 | 0.2 | 1.5 | 50 | 4 | 2 |
| NNX-2RSP-D0.2-L2 | 0.2 | 0.05 | 0.2 | 2 | 50 | 4 | 2 |
| NNX-2RSP-D0.2-L3 | 0.2 | 0.05 | 0.2 | 3 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L1 | 0.3 | 0.02 | 0.3 | 1 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L1.5 | 0.3 | 0.02 | 0.3 | 1.5 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L2 | 0.3 | 0.02 | 0.3 | 2 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L3 | 0.3 | 0.02 | 0.3 | 3 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L4 | 0.3 | 0.02 | 0.3 | 4 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L1 | 0.3 | 0.05 | 0.3 | 1 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L1.5 | 0.3 | 0.05 | 0.3 | 1.5 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L2 | 0.3 | 0.05 | 0.3 | 2 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L3 | 0.3 | 0.05 | 0.3 | 3 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L4 | 0.3 | 0.05 | 0.3 | 4 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L1 | 0.4 | 0.02 | 0.4 | 1 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L1.5 | 0.4 | 0.02 | 0.4 | 1.5 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L2 | 0.4 | 0.02 | 0.4 | 2 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L3 | 0.4 | 0.02 | 0.4 | 3 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L4 | 0.4 | 0.02 | 0.4 | 4 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L5 | 0.4 | 0.02 | 0.4 | 5 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L6 | 0.4 | 0.02 | 0.4 | 6 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L1 | 0.4 | 0.05 | 0.4 | 1 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L1.5 | 0.4 | 0.05 | 0.4 | 1.5 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L2 | 0.4 | 0.05 | 0.4 | 2 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L3 | 0.4 | 0.05 | 0.4 | 3 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L4 | 0.4 | 0.05 | 0.4 | 4 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L5 | 0.4 | 0.05 | 0.4 | 5 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L6 | 0.4 | 0.05 | 0.4 | 6 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L1 | 0.4 | 0.1 | 0.4 | 1 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L1.5 | 0.4 | 0.1 | 0.4 | 1.5 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L2 | 0.4 | 0.1 | 0.4 | 2 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L3 | 0.4 | 0.1 | 0.4 | 3 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L4 | 0.4 | 0.1 | 0.4 | 4 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L5 | 0.4 | 0.1 | 0.4 | 5 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L6 | 0.4 | 0.1 | 0.4 | 6 | 50 | 4 | 2 |
| NNX-2RSP-D0.5-L2 | 0.5 | 0.02 | 0.5 | 2 | 50 | 4 | 2 |
| NNX-2RSP-D0.5-L3 | 0.5 | 0.02 | 0.5 | 3 | 50 | 4 | 2 |
| NNX-2RSP-D0.5-L4 | 0.5 | 0.02 | 0.5 | 4 | 50 | 4 | 2 |
| NNX-2RSP-D0.5-L5 | 0.5 | 0.02 | 0.5 | 5 | 50 | 4 | 2 |
| NNX-2RSP-D0.2-L1 | 0.5 | 0.02 | 0.5 | 6 | 50 | 4 | 2 |
| NNX-2RSP-D0.2-L1.5 | 0.5 | 0.02 | 0.5 | 8 | 50 | 4 | 2 |
| NNX-2RSP-D0.2-L2 | 0.5 | 0.02 | 0.5 | 10 | 50 | 4 | 2 |
| NNX-2RSP-D0.2-L3 | 0.5 | 0.05 | 0.5 | 2 | 50 | 4 | 2 |
| NNX-2RSP-D0.2-L1 | 0.5 | 0.05 | 0.5 | 3 | 50 | 4 | 2 |
| NNX-2RSP-D0.2-L1.5 | 0.5 | 0.05 | 0.5 | 4 | 50 | 4 | 2 |
| NNX-2RSP-D0.2-L2 | 0.5 | 0.05 | 0.5 | 5 | 50 | 4 | 2 |
| NNX-2RSP-D0.2-L3 | 0.5 | 0.05 | 0.5 | 6 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L1 | 0.5 | 0.05 | 0.5 | 8 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L1.5 | 0.5 | 0.05 | 0.5 | 10 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L2 | 0.5 | 0.1 | 0.5 | 2 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L3 | 0.5 | 0.1 | 0.5 | 3 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L4 | 0.5 | 0.1 | 0.5 | 4 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L1 | 0.5 | 0.1 | 0.5 | 5 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L1.5 | 0.5 | 0.1 | 0.5 | 6 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L2 | 0.5 | 0.1 | 0.5 | 8 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L3 | 0.5 | 0.1 | 0.5 | 10 | 50 | 4 | 2 |
| NNX-2RSP-D0.3-L4 | 0.6 | 0.02 | 0.6 | 2 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L1 | 0.6 | 0.02 | 0.6 | 3 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L1.5 | 0.6 | 0.02 | 0.6 | 4 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L2 | 0.6 | 0.02 | 0.6 | 5 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L3 | 0.6 | 0.02 | 0.6 | 6 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L4 | 0.6 | 0.02 | 0.6 | 8 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L5 | 0.6 | 0.02 | 0.6 | 10 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L6 | 0.6 | 0.05 | 0.6 | 2 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L1 | 0.6 | 0.05 | 0.6 | 3 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L1.5 | 0.6 | 0.05 | 0.6 | 4 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L2 | 0.6 | 0.05 | 0.6 | 5 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L3 | 0.6 | 0.05 | 0.6 | 6 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L4 | 0.6 | 0.05 | 0.6 | 8 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L5 | 0.6 | 0.05 | 0.6 | 10 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L6 | 0.6 | 0.1 | 0.6 | 2 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L1 | 0.6 | 0.1 | 0.6 | 3 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L1.5 | 0.6 | 0.1 | 0.6 | 4 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L2 | 0.6 | 0.1 | 0.6 | 5 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L3 | 0.6 | 0.1 | 0.6 | 6 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L4 | 0.6 | 0.1 | 0.6 | 8 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L5 | 0.6 | 0.1 | 0.6 | 10 | 50 | 4 | 2 |
| NNX-2RSP-D0.4-L6 | 0.6 | 0.2 | 0.6 | 2 | 50 | 4 | 2 |
| NNX-2RSP-D0.5-L2 | 0.6 | 0.2 | 0.6 | 3 | 50 | 4 | 2 |
| NNX-2RSP-D0.5-L3 | 0.6 | 0.2 | 0.6 | 4 | 50 | 4 | 2 |
| NNX-2RSP-D0.5-L4 | 0.6 | 0.2 | 0.6 | 5 | 50 | 4 | 2 |
| NNX-2RSP-D0.5-L5 | 0.6 | 0.2 | 0.6 | 6 | 50 | 4 | 2 |
| NNX-2RSP-D0.6-L8 | 0.6 | 0.2 | 0.6 | 8 | 50 | 4 | 2 |
| NNX-2RSP-D0.6-L10 | 0.6 | 0.2 | 0.6 | 10 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L2 | 0.8 | 0.02 | 0.8 | 2 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L3 | 0.8 | 0.02 | 0.8 | 3 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L4 | 0.8 | 0.02 | 0.8 | 4 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L5 | 0.8 | 0.02 | 0.8 | 5 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L6 | 0.8 | 0.02 | 0.8 | 6 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L8 | 0.8 | 0.02 | 0.8 | 8 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L10 | 0.8 | 0.02 | 0.8 | 10 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L2 | 0.8 | 0.05 | 0.8 | 2 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L3 | 0.8 | 0.05 | 0.8 | 3 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L4 | 0.8 | 0.05 | 0.8 | 4 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L5 | 0.8 | 0.05 | 0.8 | 5 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L6 | 0.8 | 0.05 | 0.8 | 6 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L8 | 0.8 | 0.05 | 0.8 | 8 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L10 | 0.8 | 0.05 | 0.8 | 10 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L2 | 0.8 | 0.1 | 0.8 | 2 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L3 | 0.8 | 0.1 | 0.8 | 3 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L4 | 0.8 | 0.1 | 0.8 | 4 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L5 | 0.8 | 0.1 | 0.8 | 5 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L6 | 0.8 | 0.1 | 0.8 | 6 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L8 | 0.8 | 0.1 | 0.8 | 8 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L10 | 0.8 | 0.1 | 0.8 | 10 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L2 | 0.8 | 0.2 | 0.8 | 2 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L3 | 0.8 | 0.2 | 0.8 | 3 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L4 | 0.8 | 0.2 | 0.8 | 4 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L5 | 0.8 | 0.2 | 0.8 | 5 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L6 | 0.8 | 0.2 | 0.8 | 6 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L8 | 0.8 | 0.2 | 0.8 | 8 | 50 | 4 | 2 |
| NNX-2RSP-D0.8-L10 | 0.8 | 0.2 | 0.8 | 10 | 50 | 4 | 2 |
| Série ré'outils | réiamètre | R.ayon | R.ayon de coin | Longueur de flûte | Longueur efficace | Longueur totale | réiamètre de la tige | |||
| D | R | CR | LC | L1 | L | d | ||||
| Fraises en carbure NNX pour électrode de cuivre | D0.1~D0.9 | 0 -0,005 | R0,05 ~ R2 | /-0,005 | CR0,05 ~ CR0,5 | /-0,005 | 0 0.3 | 0 0.3 | 0.5 -0,5 | h5 |
| D1~D3.5 | 0 -0,005 | |||||||||
| J4~D10 | -0,003 -0,015 | R3~R5 | /-0,005 | CR1.0 ~ CR3.0 | /-0,008 | 0 0.5 | 0 0.5 | |||
| J12~D20 | -0,003 -0,018 | R6~R10 | /-0,008 | |||||||

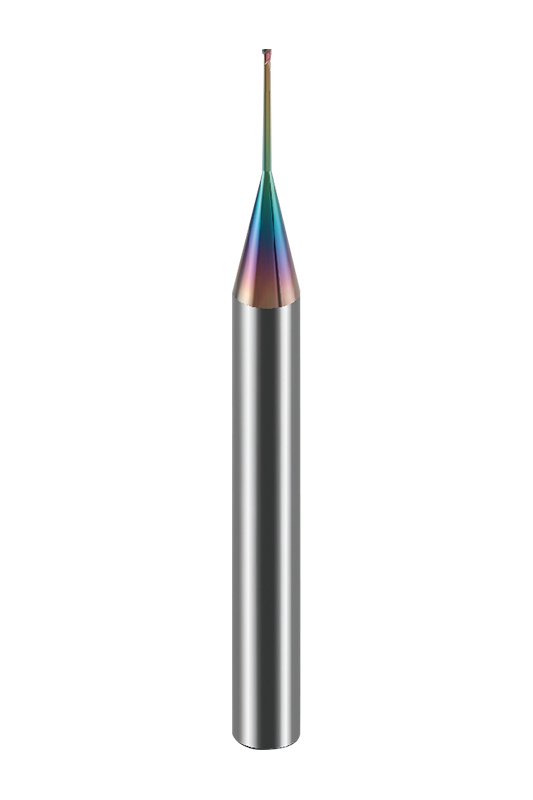

Les produits de la série NNX-2RSP offrent une large gamme de tailles, couvrant des diamètres d'outils de 0,2 mm à 0,8 mm, et permettent une variété de combinaisons en termes de longueur de lame, de diamètre de lame et de rayon de congé. Qu'il s'agisse d'exigences d'usinage d'ultra-précision ou d'exigences spécifiques de coupe en profondeur, cette série peut fournir une adaptation flexible pour répondre aux options de haute précision dans différents scénarios d'usinage.
La conception unique du nez rond à rainure profonde est spécialement conçue pour l'usinage fin des électrodes de cuivre, ce qui optimise la répartition de la charge de coupe et permet à l'outil de maintenir sa stabilité dans un petit espace. L'angle d'hélice de 30° assure une évacuation en douceur des copeaux et réduit la chaleur et l'usure de l'outil causées par l'accumulation de copeaux pendant l'usinage. Combiné aux caractéristiques du micro-diamètre, il permet d'obtenir d'excellentes performances dans un environnement d'usinage de haute précision.
Toute la série utilise des substrats à particules ultrafines (0,2 μm) dotés de la dernière technologie de revêtement DLC, conférant à l'outil un coefficient de frottement ultra-faible et une excellente résistance à l'usure, améliorant considérablement la durée de vie de l'usinage. Avec le processus de meulage de précision, la netteté du tranchant atteint l'extrême. La conception globale se concentre sur les performances d'usinage miroir de l'électrode de cuivre pour obtenir une microfinition plus efficace et plus stable.
